Material Freight Lifts

Moving materials and people from one level to another safely and effectively at a facility is a science. That's why the material lifts Excel Solutions® offers are engineered to be tested against tough applications. We offer lifts to dive costs down and make your operations leaner and faster. Understanding material lifts is crucial to helping our customers achieve a successful operation. Across the Cleveland and Akron region, we offer superior freight lifts and vertical conveyors to keep costs low and productivity high.

Showing 6 of 6 products

Series D Hydraulic Lift

Brand:
PFlow
Series D Hydraulic Lift

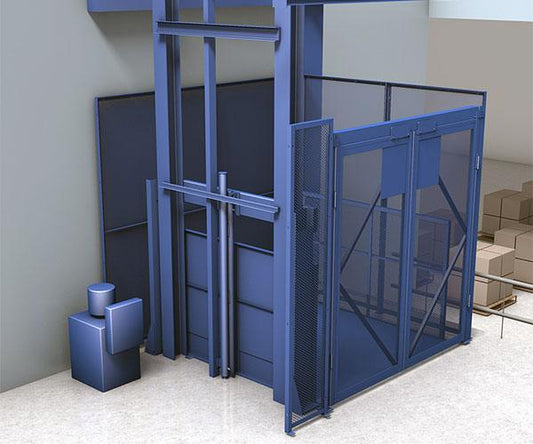

As with most of PFlow’s vertical lifts, the Series D Hydraulic Freight Lift is ideal for both indoor and outdoor use, and meets ASME B20.1 safety requirements. PFlow’s unique guided Dual-Pak design provides superior long-term performance. The Series D Hydraulic Lift has carriage sizes up to 6′ by 6′ and a vertical rise of up to 15′. The standard travel speed of the Series D hydraulic freight lift is 17 fpm (available up to 25 fpm) and has a maximum weight capacity of 4,000 lb.
Series M Mechanical Lift

Brand:
PFlow
Series M Mechanical Lift

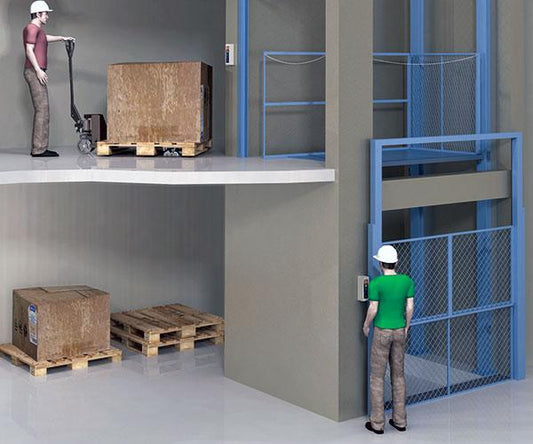

Perfect for industrial applications, PFlow’s Series M Mechanical Freight Lift can be installed both indoors and outdoors. The Series M is available with PFlow’s patented DeckLock Safety System and is designed to meet ASME B20.1 safety requirements. With unlimited carriage sized and a maximum vertical rise of 200′, the Series M vertical conveyor has a standard travel speed of 25 to 30 fpm. The Series M carriage is lifted and lowered via a heavy-duty roller chain on a two-post design.
Series F Mechanical Lift

Brand:
PFlow
Series F Mechanical Lift

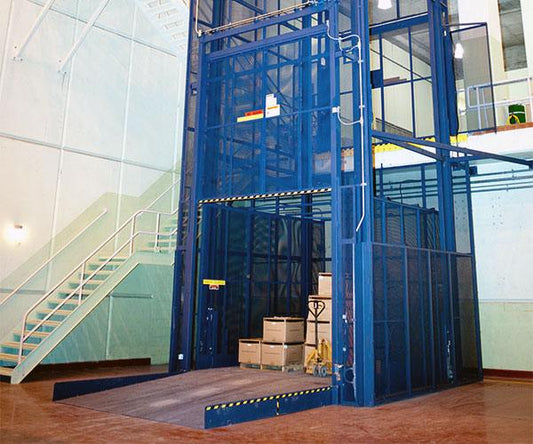

Great for indoor or outdoor applications, the Series F Mechanical Lift by PFlow was designed to meet ASME B20.1 safety requirements and offers loading or unloading from all four sides. The carriage of the Series F vertical conveyor is offered in unlimited sizes and is lifted and lowered via a heavy-duty roller chain with no maximum vertical rise. The standard travel speed of the Series F freight lift is 20 fpm, with PFlow’s patented DeckLock Safety System optional.
Series 21 Hydraulic Lift

Brand:
PFlow
Series 21 Hydraulic Lift

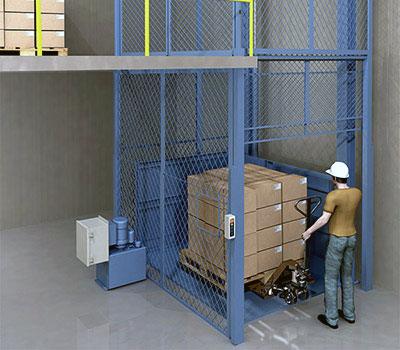

PFlow’s Series 21 Hydraulic Material Lift is ideal for indoor or outdoor use and meets ASME B20.1 safety requirements. The carriage on the Series 21 is lifted and lowered by two hydraulic cylinders and equalized by a torsion bar, with carriage sizes available up to 12′ by 10′. The Series 21 is offered with a maximum vertical rise of 22′ and a standard travel speed 24 fpm (available up to 35 fpm). The maximum weight capacity of PFlow’s Series 21 Hydraulic Lift is 6,000 lb.
Series B Packaging Handling Lift

Brand:
PFlow
Series B Packaging Handling Lift

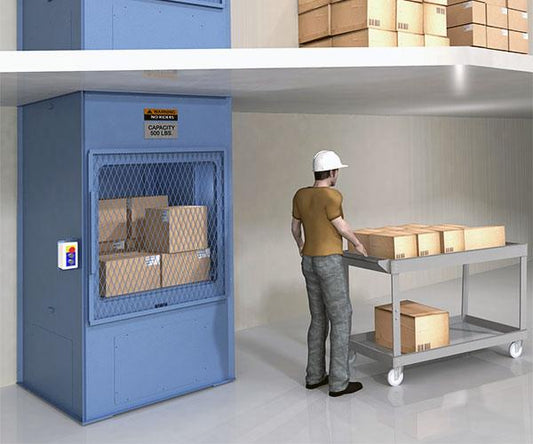

Ideal for lifting boxes, totes, cartons, parts and materials to mezzanines and between floors, PFlow’s Series B Mechanical Package Handling Lift is your reliable solution. With a standard carriage size of 3′ by 3′, the Series B vertical conveyor conforms to ASME B20.1 safety requirements. The Series B package lift offers a standard travel speed of 30 fpm and is equipped with a cover gate that hinges right and locks left, or the opposite depending on your preference.
Series DB Packaging Handling Lift

Brand:
PFlow
Series DB Packaging Handling Lift
The Series DB Package Handling Freight Lift is a completely self-contained and self-supporting vertical reciprocating conveyor designed to save space and reduce costs. The Series DB provides high throughput of loads and moves them between levels. Loading and unloading is an option from three sides and is available with variable frequency or Servo drive packages. The standard carriage size on the Series DB package lift is 3′ by 3′ and has travel speeds ranging from 60 to 600 fpm.
