PFlow Series D Hydraulic Lift

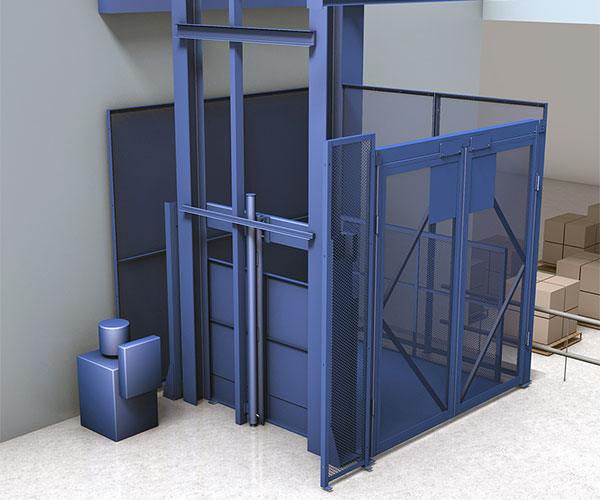

The PFlow D Series is a cost-effective, two-level hydraulic vertical reciprocating conveyor (VRC) designed for mezzanine and balcony applications. Engineered for durability and smooth operation, it offers highly stable loading and unloading, making it ideal for handling lighter pallet loads in a variety of environments. The D Series features direct-action hydraulic lifting technology, ensuring efficiency and reliability with minimal maintenance.

Key Features:

• Lifting Capacity: Handles loads up to 3,000 lbs. with a carriage size of up to 6’ x 6’.
• Vertical Travel: Lifts materials up to 15 feet with a standard travel speed of 17 feet per minute.
• Hydraulic Direct Lift Mechanism: Uses dual direct-acting hydraulic cylinders for smooth, controlled lifting.
• Highly Stable Operation: Equipped with a pressure switch to prevent load drift and ensure precise positioning.
• Built-in Safety Features:
  • DeckLock Safety System (optional) for added security at upper levels.
  • Check valves to hold the carriage in place during power loss.
  • Velocity fuses prevent uncontrolled carriage descent in case of a hydraulic hose rupture.
  • ASME B20.1 compliance, ensuring adherence to safety standards.
• Flexible Configuration: Cantilever design allows loading/unloading from three different sides.
• Durable Construction: Heavy-duty steel frame and structural components ensure longevity.
• Indoor & Outdoor Use: Available with galvanized or epoxy finishes for outdoor or wash-down environments.
• Ease of Installation & Maintenance: Pre-wired quick-connect options reduce field wiring costs and speed up installation.
• Common Features Across PFlow VRCs:
  • Custom-built to match customer specifications (no "one-size-fits-all").
  • Lifetime structural warranty for confidence in long-term durability.
