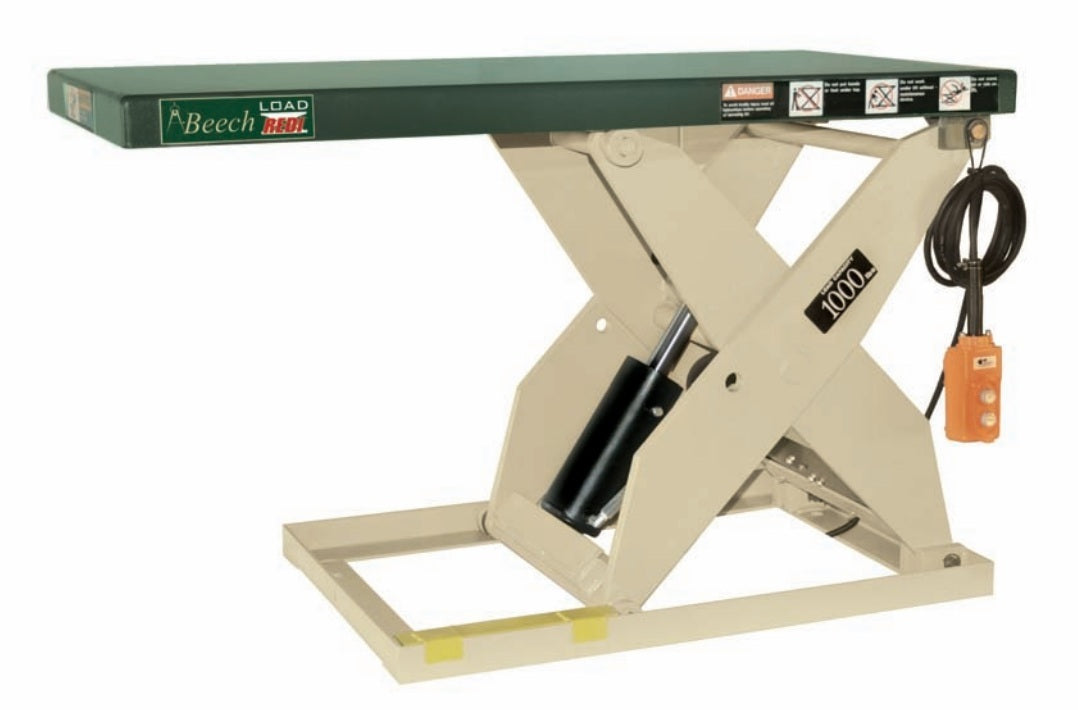

Hydraulic Lift Tables

LoadRedi Lift Tables are a versatile and reliable material handling solution designed to improve workplace safety and efficiency in warehouses, manufacturing facilities, assembly lines, and distribution centers. By reducing the need for manual lifting, it minimizes worker fatigue and the risk of injury while optimizing workflow. Built with heavy-duty steel and a scissor-lift mechanism, it provides a stable and durable platform for lifting and positioning heavy loads. With a range of customizable options, it accommodates various industrial applications, from handling pallets and heavy equipment to assembly and production tasks.

Key Features:

• Capacities 2000 to 7000 lbs.
• Three Platform Sizes: 24", 36" and 48" wide are standard on all models.
• Vertical Travel: 24", 36" and 48"
• Internally Mounted Power (motor, hydraulic pump and reservoir). Easy to remove for repair and mantenance.
• Motors: Single phase and three phase can be interchanged on most models.
• Rugged Steel Weldments (base, cross member, legs and platform) provide rigidity and stability.
• Hinged Platform for quick access to power pack and cylinder.

Options Available:

• Oversize Platform in 2” increments up to 48” w and 60” long on Standard Lifts (36” wide on Light Duty Series).
• Beveled Toe Guard Platform Edges at 30 degree angle (4” increase on all sides on standard size platform).
• Pit Mounted (in ground) units require beveled edges and lifting eyes.
• Portable Unit for moving empty lifts. Uses two wheel and a wheeled dolly handle.
• Transportable Unit for moving workloads. Two wheel and two caster plus reinforced base. Increases lowered height (consult factory).
• Fork Pockets for moving lift with fork truck.
• Turntables: 24”, 36” and 48” round or square (must conform to capacities of lift).
• Available with optional spring-activated detent. Stops at 90 degree increments.
• Conveyer Tops and Ball Transfer Top Material: Consult factory.

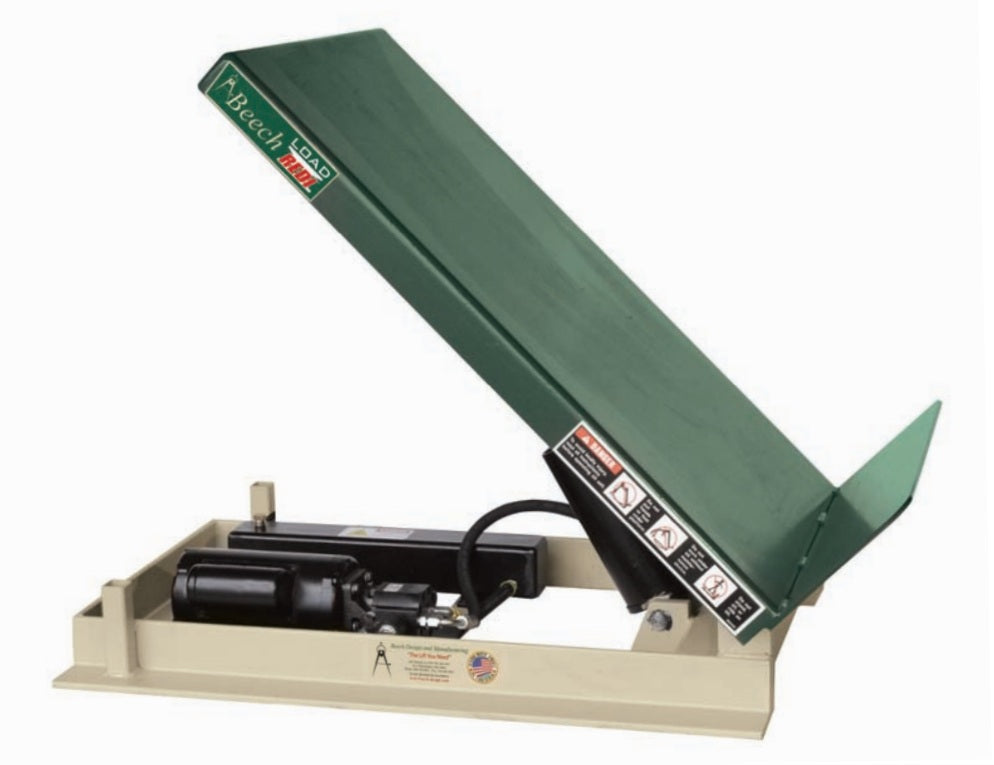

• Power: Larger HP motors, external mounted motors, and tilts available (consult factory).
• Electrical: Hand-held NEMA 4 controls. Foot-operated control. Pedestal-mounted controls. Wall-mounted controls. Limit Switches for vertical travel.
• Accordion Skirt, Electro-Mechanical Toe Guard.

LoadRedi Lift Tables are an essential tool for businesses looking to improve efficiency, reduce strain on workers, and enhance safety in heavy-duty lifting operations. It is ideal for lifting materials such as pallets, machinery, and heavy components, making it a valuable asset in manufacturing, logistics, and industrial processing environments.
