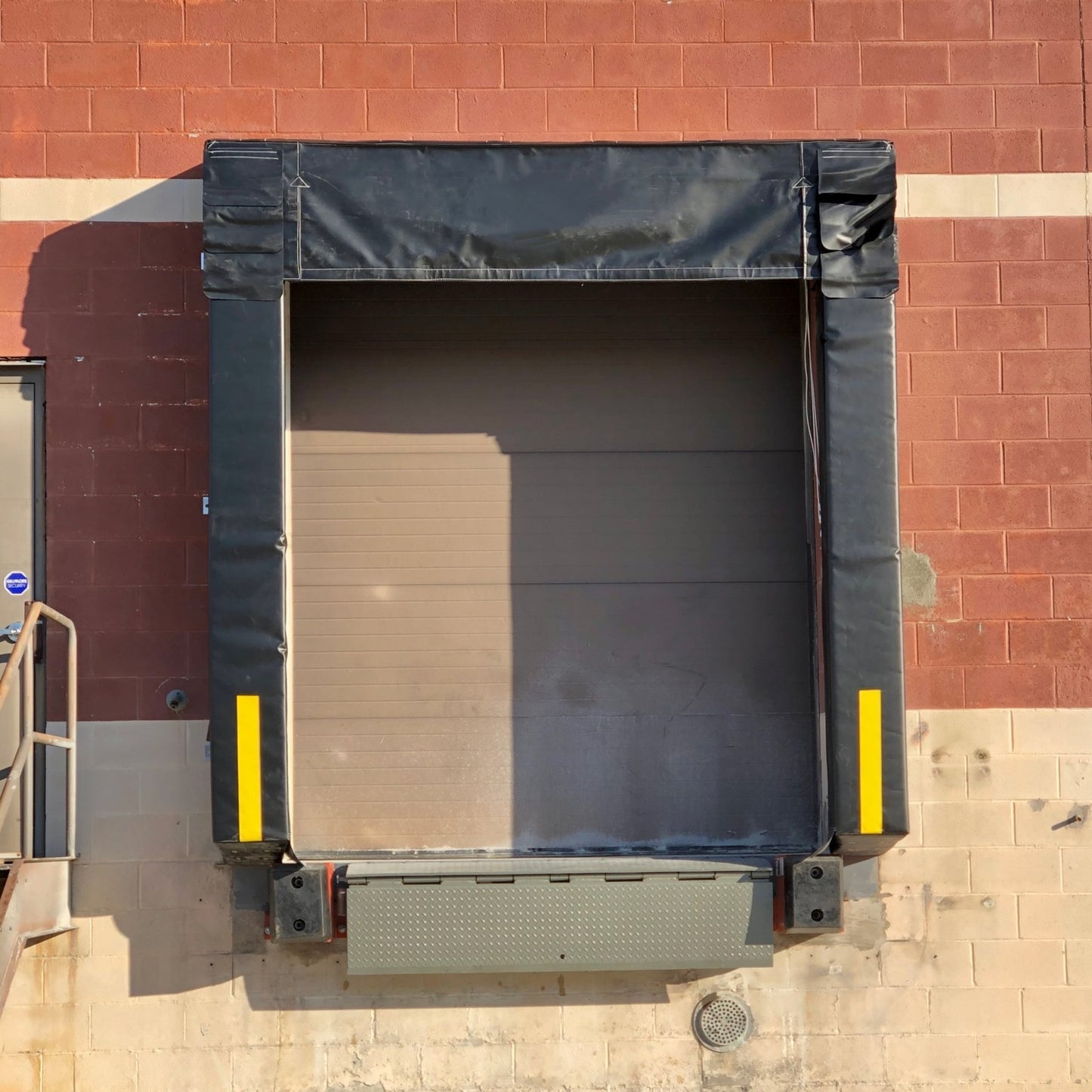

Heavy-Duty Foam Loading Dock Seal

Heavy-Duty Loading Dock Seal Pads, Foam-Fit 40 oz Vinyl, 24 High Guide Stripes - Select Variation

Product is made-to-order can cannot be cancelled or returned once an order is placed. This item ships in up to 6 weeks. Truck dock seal pads save you money on your energy bills while providing airtight protection to the loading dock area during materials handling operations. Dock pads act as a barrier to keep your interior environment separate from the outside elements. Vehicles at the dock compress the foam dock pads, eliminating the gap between the building and truck body.
The ideal trailer or truck seal with a side pad taper to match your driveway grade. Beveled side pads ensures greater accessibility to truck or trailer openings.

*This product is made for loading docks that see the same-sized over-the-road semi-truck trailers that are 12'-6" to 13'-6" high and 8'-0" to 8'-6" wide without rear extensions, bumpers, lift gates, or irregular tail end projections.

*This product cannot be used on any dock with a declined approach that does not have a building ledge, with only 4" thick rubber dock bumpers present.

*A minimum of 6" of clearance at the top of the opening to the trailer body is required to use this product. That is from the wall surface to the trailer body.

*Dock seal pad should not exceed 6" of compression.

*If metal siding is used to project past the regular wall surface, lumber block-out will be required for installation and is not included.

*Installation onto metal siding will require through bolt installation on a wood backed dock seal only. Through bolt must anchor firmly onto a supported wall structure behind the wall or to an anchor plate which is not included. A metal-backed dock seal cannot be through-bolted to the wall.

• Durable 40 oz Vinyl cover fabric
• Yellow urethane visibility stripe 24" high each side
• 12" drop curtain on head pad for 9 ft high openings
• 10' high openings use a head curtain in-lieu of a pad
• Overlapping wear pleats at top corners for added wear protection
• Polyurethane foam compresses and conforms to body irregularities
• Kiln-treated lumber frame
• Highly visible, urethane finished yellow guide stripe
• Bonded, high-tensile and multi-cord polyester thread
• Includes rust-resistant installation brackets
